Brand Name : OEM and ODM
Model Number : SL81028S011
Certification : UL,ROhs
Place of Origin : China
MOQ : 1pc
Price : USD2.2-5/PC
Payment Terms : T/T, Western Union, MoneyGram,Paypal
Supply Ability : 10000pcs per day
Delivery Time : 5-7 days
Packaging Details : ESD Bag
Board Thickness : 1.0mm
Min.Hole Size : 0.08mm
Min.Line Width : 0.05mm
Feature 1 : Gerber file needed
Feature 2 : 100% E-test
Feature 3 : Quality 2 years guarantee
PCBA design manufacturer SMT components for electronic device
Product Description
| Product Type | Al Clad PCB 1 layer~2 layer |
| Maximum Panel size | 20"*24" (1170mm*600mm) |
| Copper thickness | 0.5oz, 1oz, 2oz, 3oz and 4 oz |
| Dielectric Thickness | 0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm |
| Substrate Core Thickness | 0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm,2.0mm, 3.0mm and 3.2mm |
| Finished Board Thickness | 0.4mm To 4.0mm |
| Thickness Tolerance | +/-10% |
| Aluminum Machining | Drilling,Tapping,Milling,Routing, Die-Punching,break-off tab available |
| Min. Finish hole size | 0.25mm |
| Max.working voltage | 2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric) |
| Min.Track Width | 0.2mm (8mils) |
| Min.Track gap | 0.2mm (8mils) |
| Min. SMD pad pitch | 0.2mm (8mils) |
| Surface Finishing | HASL, HASL Leadfree, Immersion gold, Flash gold, OSP |
| Soldermask color | White, Black, others Available |
| Legend color | Black, White, others Available |
| Etest | YES |
| Rohs | YES |
| Reference Standard | IPC-A-600G Class 2 |
| Special holes | Spot facing, Cup holes |
| Data Input | Gerbers, AutoCad, Cam350, PROTEL 99SE,PROTEL DXP, |
OEM/ODM/EMS Services For PCBA
· PCBA, PCB Board assembly: SMT & PTH & BGA
· PCBA and enclosure design
· Components sourcing and purchasing
· Quick prototyping
· Plastic injection molding
· Metal sheet stamping
· Final assembly
· Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
· Custom clearance for material importing and product exporting
PCB Manufacturing Lead Time
| Layer/Days | Sample(Normal) | Sample(Fast) | Mass Production |
| Single/Double | 2-3days | 24hours | 5-7days |
| Four Layer | 7-10days | 3days | 7-10days |
| Six Layer | 7-10days | 5days | 13-15days |
| Eight Layer | 15-20days | 7days | 15-20days |
PCB Assembly Capabilities
| Turnkey PCBA | PCB+components sourcing+assembly+package |
| Assembly details | SMT and Thru-hole, ISO lines |
| Lead Time | Prototype: 15 work days. Mass order: 20~25 work days |
| Testing on products | Flying Probe Test, X-ray Inspection, AOI Test, functional test |
| Quantity | Min quantity: 1pcs. Prototype, small order, mass order, all OK |
| Files we need | PCB: Gerber files(CAM, PCB, PCBDOC) |
| Components: Bill of Materials(BOM list) | |
| Assembly: Pick-N-Place file | |
| PCB panel Size | Min size: 0.25*0.25 inches(6*6mm) |
| Max size: 20*20 inches(500*500mm) | |
| PCB Solder Type | Water Soluble Solder Paste, RoHS lead free |
| Components details | Passive Down to 0201 size |
| BGA and VFBGA | |
| Leadless Chip Carriers/CSP | |
| Double-sided SMT Assembly | |
| Fine Pitch to 0.8mils | |
| BGA Repair and Reball | |
| Part Removal and Replacement | |
| Component package | Cut Tape,Tube,Reels,Loose Parts |
| PCB assembly process | Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |

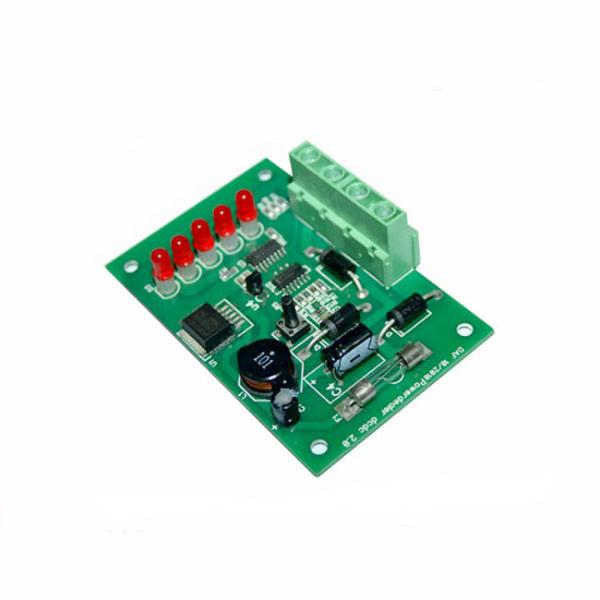

PCBA Picture

|
|
PCBA SMT Electronic Circuit Board Components , Electronic Assembly Fabrication Images |
